Logic

Available Functions

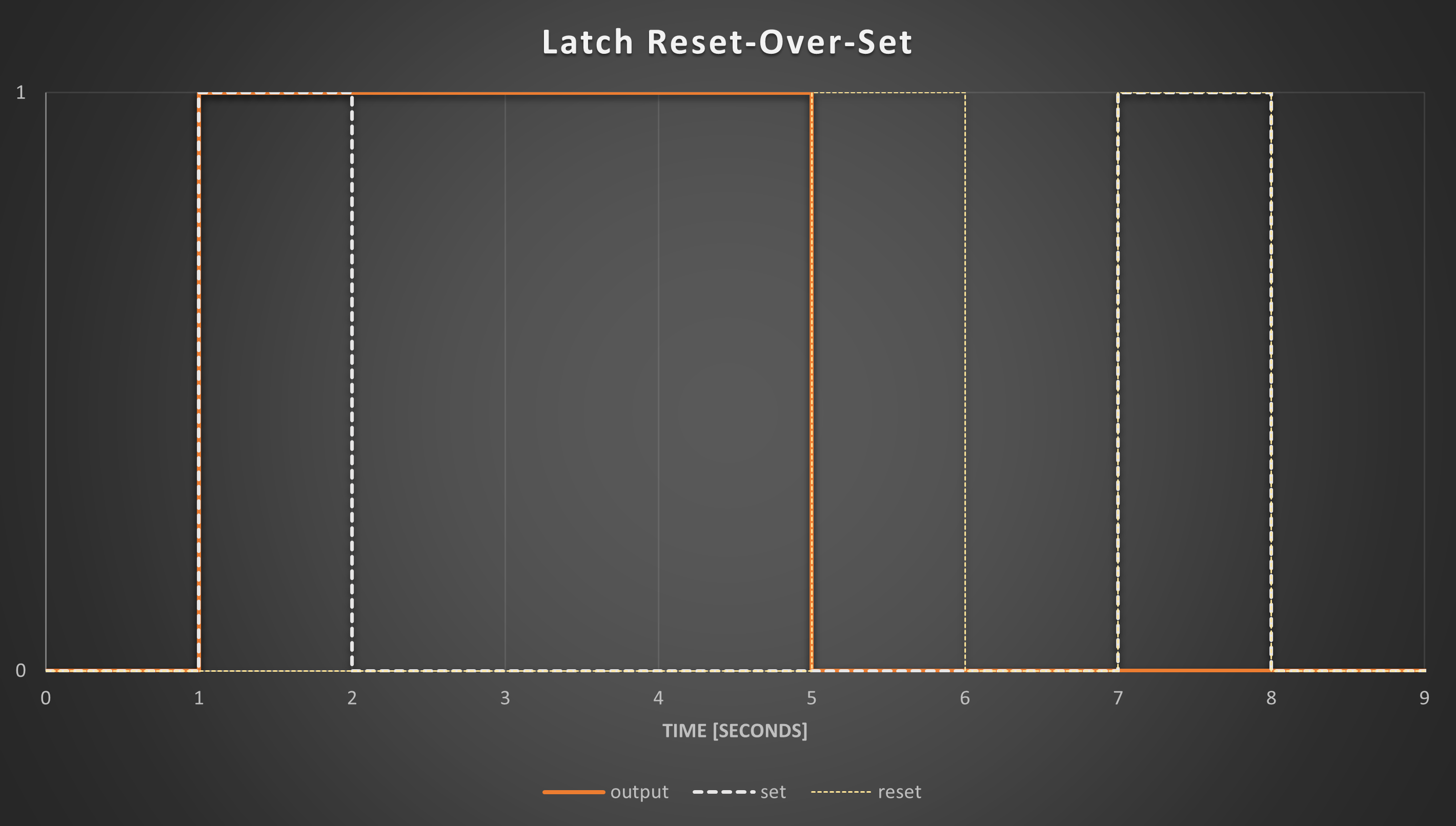

latchROS(set, reset)

Latch output to true when the set argument is true. Reset the output to false when reset is true. Prioritize reset over set if both inputs are true.

Usage

core.logic.latchROS(set, reset);

Arguments

set

[boolean] latches the output to true

reset

[boolean] resets the output to false regardless of the value of set

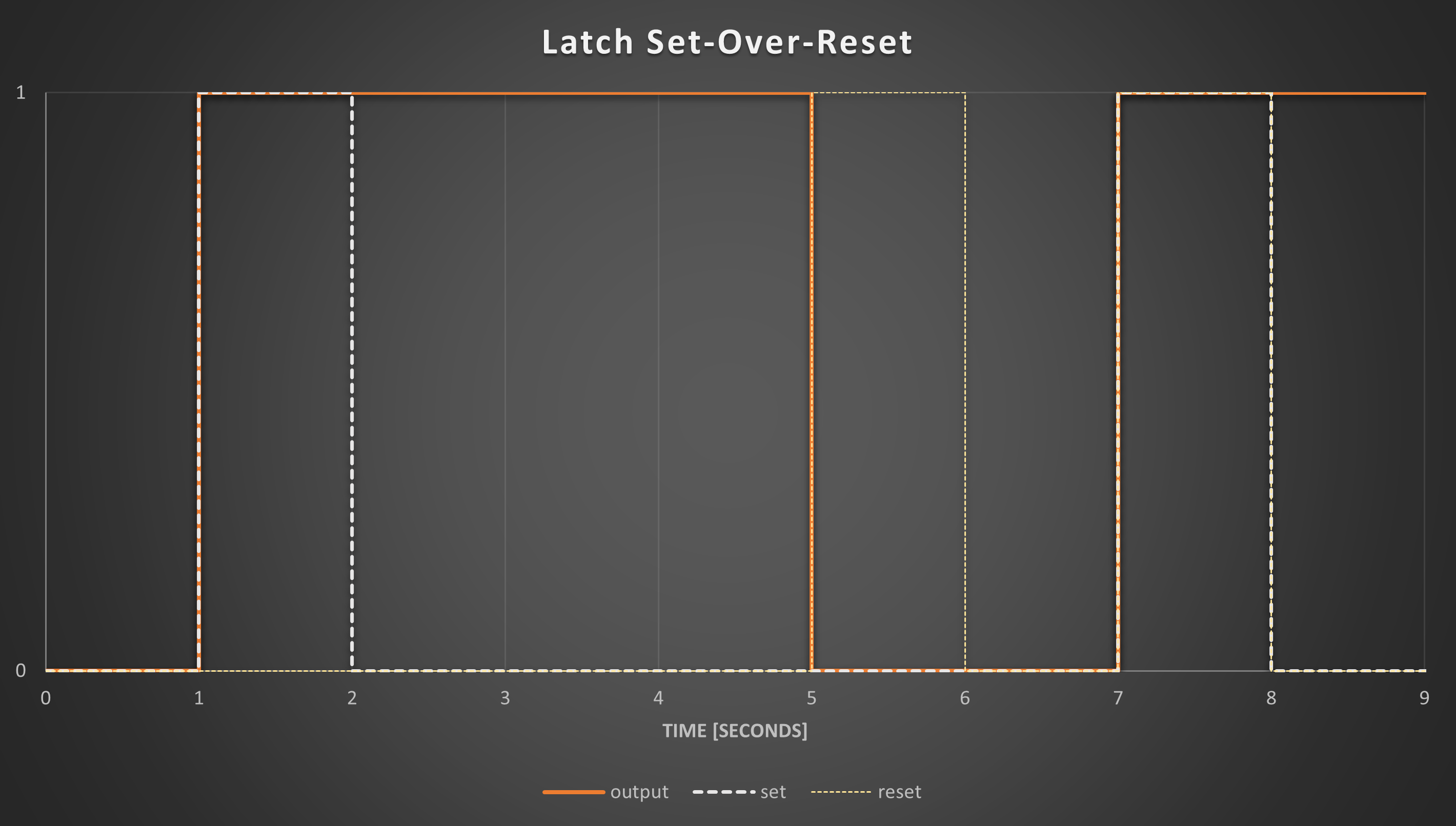

latchSOR(set, reset)

Latch output to true when the set argument is true. Reset the output to false when reset is true. Prioritize set over reset if both inputs are true.

Usage

core.logic.latchROS(set, reset);

Arguments

set

[boolean] latches the output to true

reset

[boolean] resets the output to false only if set is false
