Digital Twins

Digital Twins represent a group of Things that together form a composite device. They are closely related, each playing a role in a reusable Digital Twin Type, and can use values from the other Things in their own Calculated Fields and Alert Conditions.

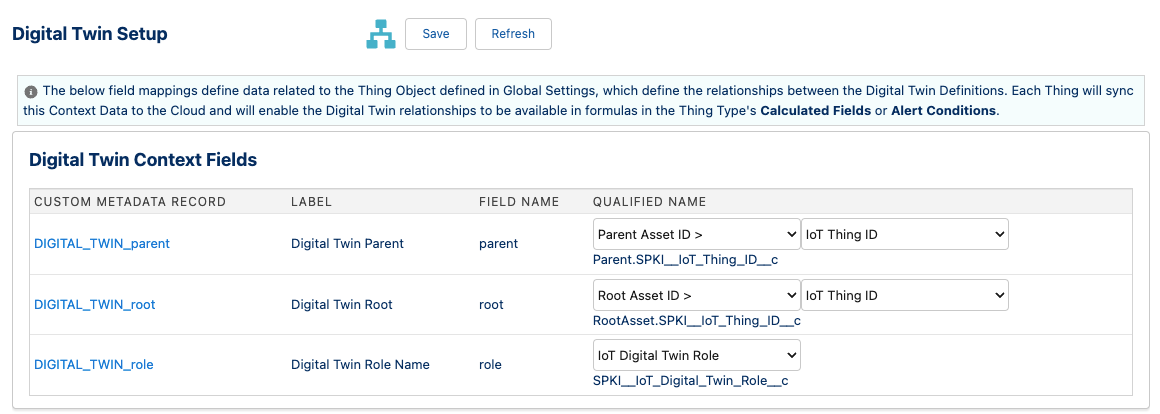

Digital Twin Field Bindings

The 1st step in setting up Digital Twins is to configure which Thing Fields to use to represent the hierarchical and role relationship values.

Digital Twin Root

The fields from the Thing Object to the Root Thing and it’s unique Thing Identifier.

Digital Twin Parent

The fields from the Thing Object to the immediate Parent Thing and it’s unique Thing Identifier.

Digital Twin Role Name

The field to hold the role name that this Thing plays in the Digital Twin Type.

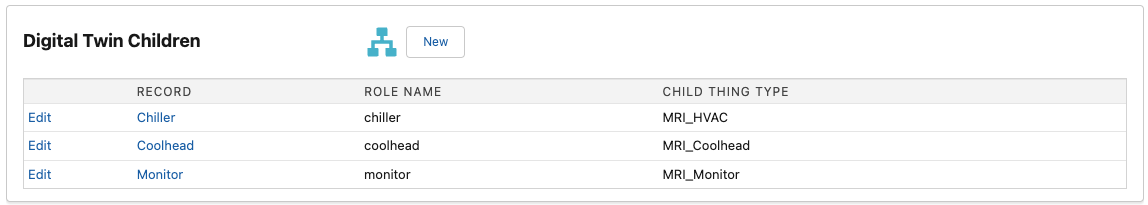

Digital Twin Children (in Thing Types)

The next step is defining the child roles in the Thing Type defintions that make up the Digital Twin Types. Go to the Thing Types setup page, and click into the desired parent Thing Type.

Role Name

The role that the child Thing Type plays in the related group of Things.

Child Thing Type

The Thing Type of the Child.

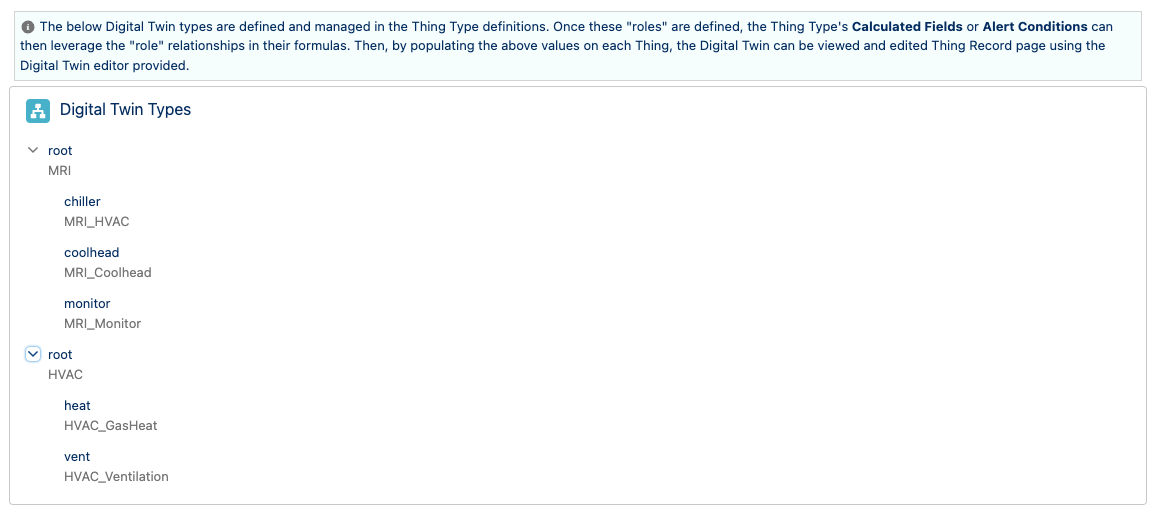

Digital Twin Types

After the Digital Twin Children are configured in one or more Thing Types, the Digital Twin Setup screen will now display all of the Digital Twin Types across all of the Thing Types.

Digital Twin Diagram / Editor

On the Thing Record Page, add the IoT Digital Twin and easily view/edit the Digital Twin from any Thing in the configured Hierarchy.

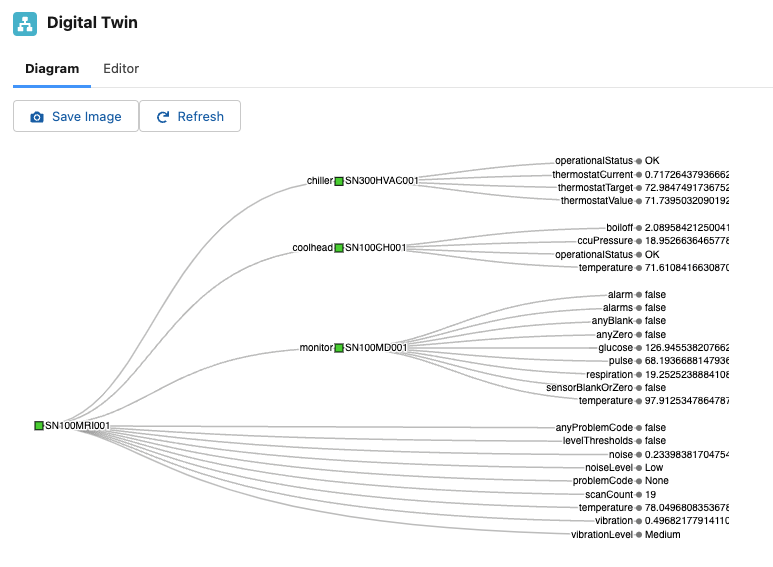

The Diagram shows all of the most recent sensors and calculated fields from all Things in the same Digital Twin.

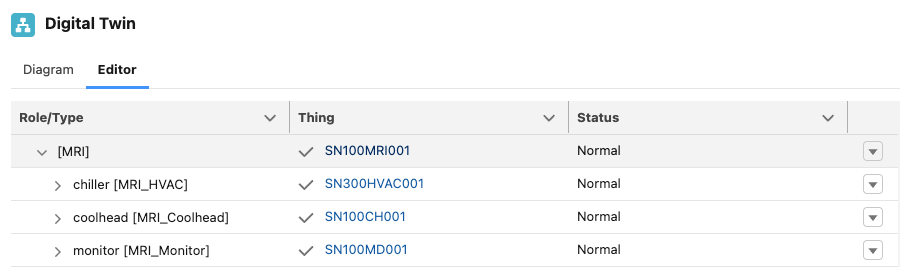

The Editor allows the user to assign Things into the roles in the Digital Twin, as well as easily navigate to any other thing in the Digital Twin.

Digital Twin API

We expose a REST Web Service to retrieve the Digital Twin data for any “Thing”. Use the following URL to retrieve the Digital Twin data:

YOUR_SALESFORCE_DOMAIN/services/apexrest/SPKI/DigitalTwin/SALESFORCE_ID

The REST service will return JSON in the following structure:

{
  "thingType" : "XXX",
  "sensors" : [
    { "key": "SENSOR_NAME_X", "value": "XXX" },
    { "key": "SENSOR_NAME_Y", "value": "YYY" }
  ],
  "role" : “XXX”,
  "id" : "SALESFORCE_ID",
  "externalId" : "UNIQUE_KEY",
  "children" : [ … Recursive structure for nested Digital Twins … ]
}
