Filter

Library for filtering signals.

Available Functions

`firstOrderLag(signal, tau)`

Filter a signal using a first-order low-pass filter.

Usage

core.filter.firstOrderLag(signal, tau);

Arguments

signal: [number] unfiltered value
tau: [number] time-constant. Large values result in more filtering.

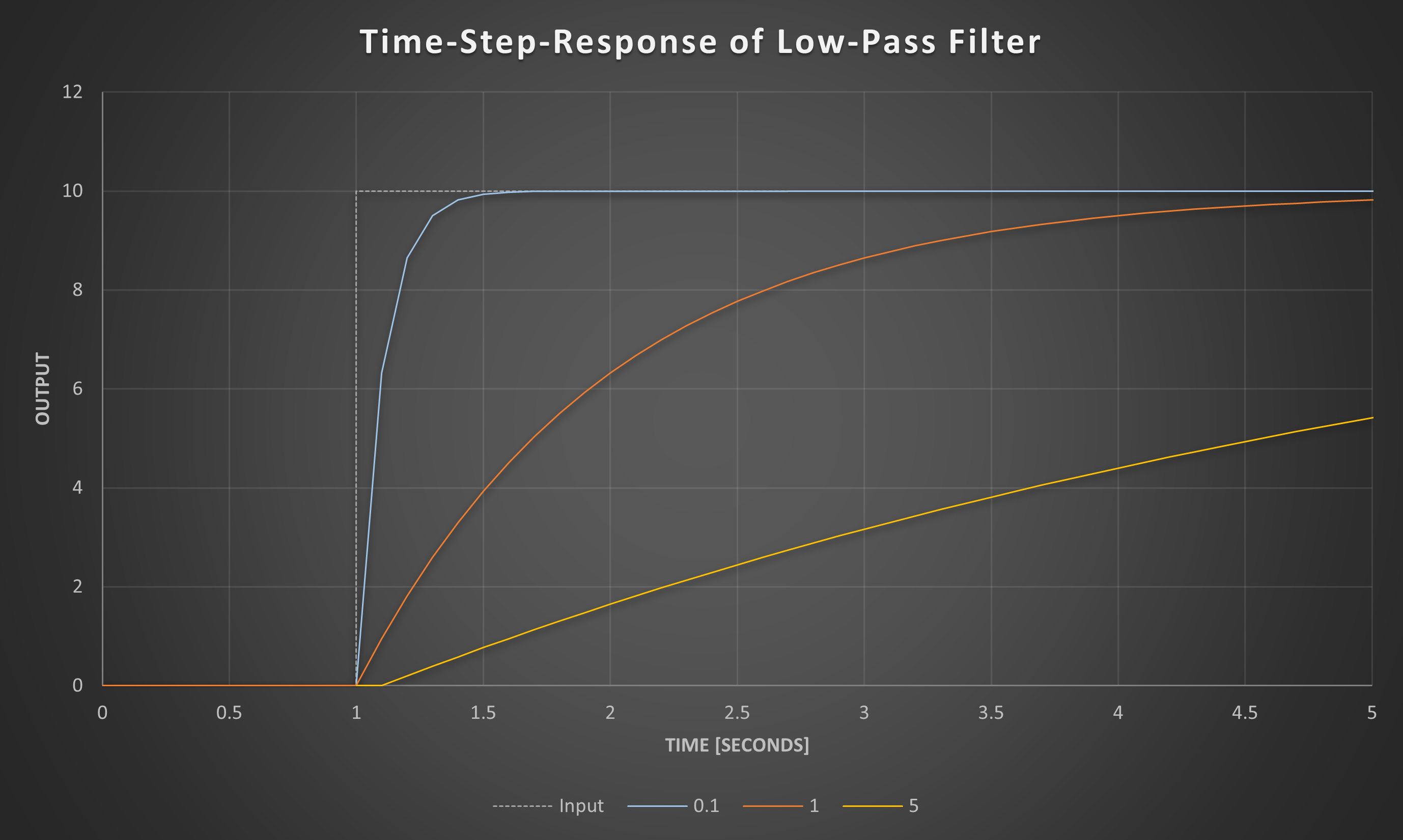

Effect of tau on time-response — Effect of tau on time-response
